4U/19-inch standard Industrial chassis,Supports up to ATX [9.6
ZL-A4030-4031
ZL-A4030-4031
Applicable solutions
The motherboard supports ATX (9.6"x12") and smaller specifications, and supports standard ATX power supplies

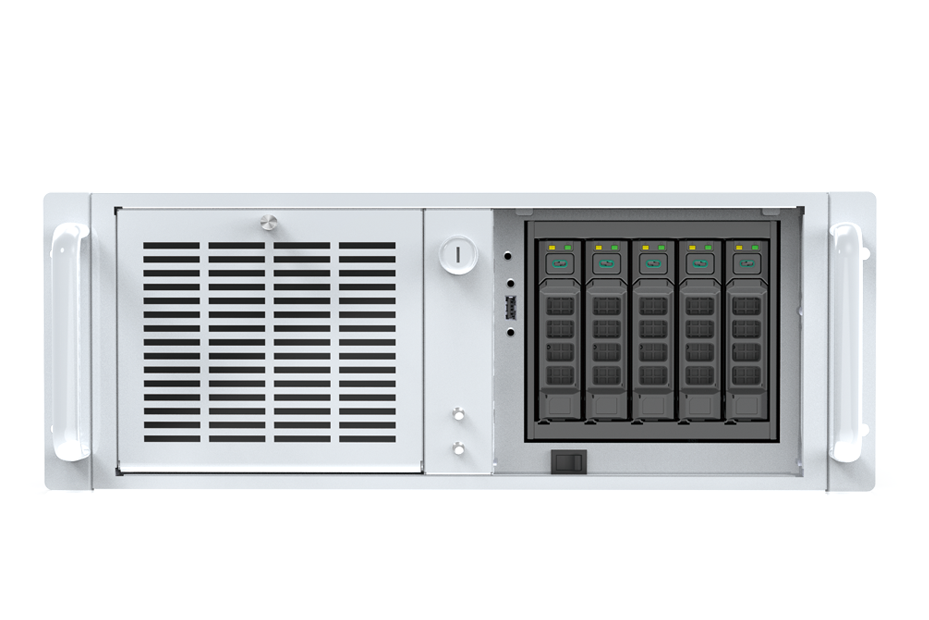

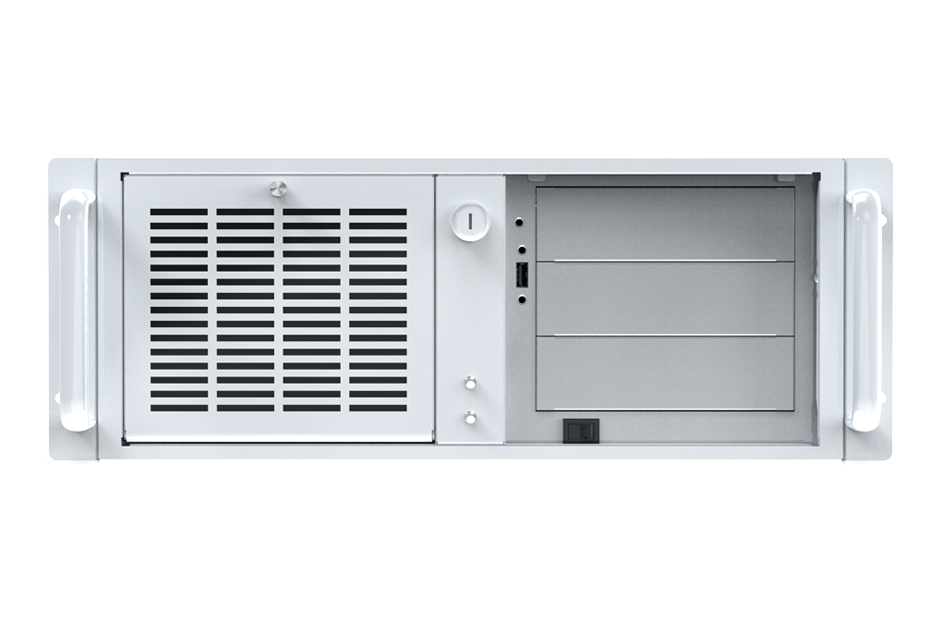

Supports 2x5.25 optical drives, 1x3.5-inch hard drive, 2x2.5-inch hard drive bays, or optional hot-swappable 5x3.5 HDD
Intelligent temperature control, supporting up to 1x12025 fan

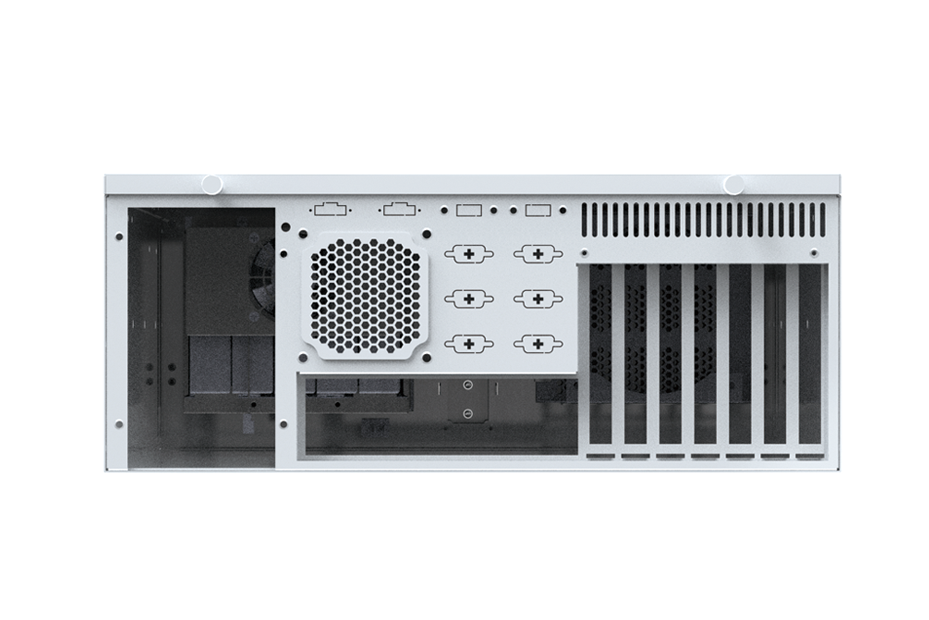

Support full-height cards x7
Ultra-high computing power
It supports Intel® Xeon® Scalable series processors (Intel® Core™ i7-10700K), supports 2 high-power CPUs, and has 1 native M.2 interface on the motherboard, enabling ultra-high computing power. At the same time, it has undergone comprehensive improvements in terms of core, frequency, cache, and interconnect channels. It adopts DDR4 memory technology and supports 2TB memory expansion capability, which can be expanded as needed to meet the application requirements of ultra-high computing power in digital currency, cloud computing, big data, virtual computing, and other fields
Good heat dissipation control
The unique design of the front-mounted GPU chamber allows the GPU to draw in more cool air, and features a separate GPU cooling duct, forming a ventilation and heat dissipation channel that runs from the front to the back. This design ensures timely removal of the large amount of heat inside the chassis, thereby guaranteeing stable operation of the server
Extraordinary GPU density support
The 4U system can support up to 10 dual-wide, full-height GPU cards for switch interconnection, and is compatible with the NVIDIA GeForce series and NVIDIA Tesla A800. It offers multiple power supply options, requires no accessory modifications, and provides an unparalleled excellent architecture for pursuing greater computing performance
AI-based intelligent remote management
IPMI remote management enables real-time monitoring and operations, including power-on/off, on the system remotely, ensuring timely maintenance by system administrators. It achieves a true redundancy architecture, encompassing fans, power supplies, and storage

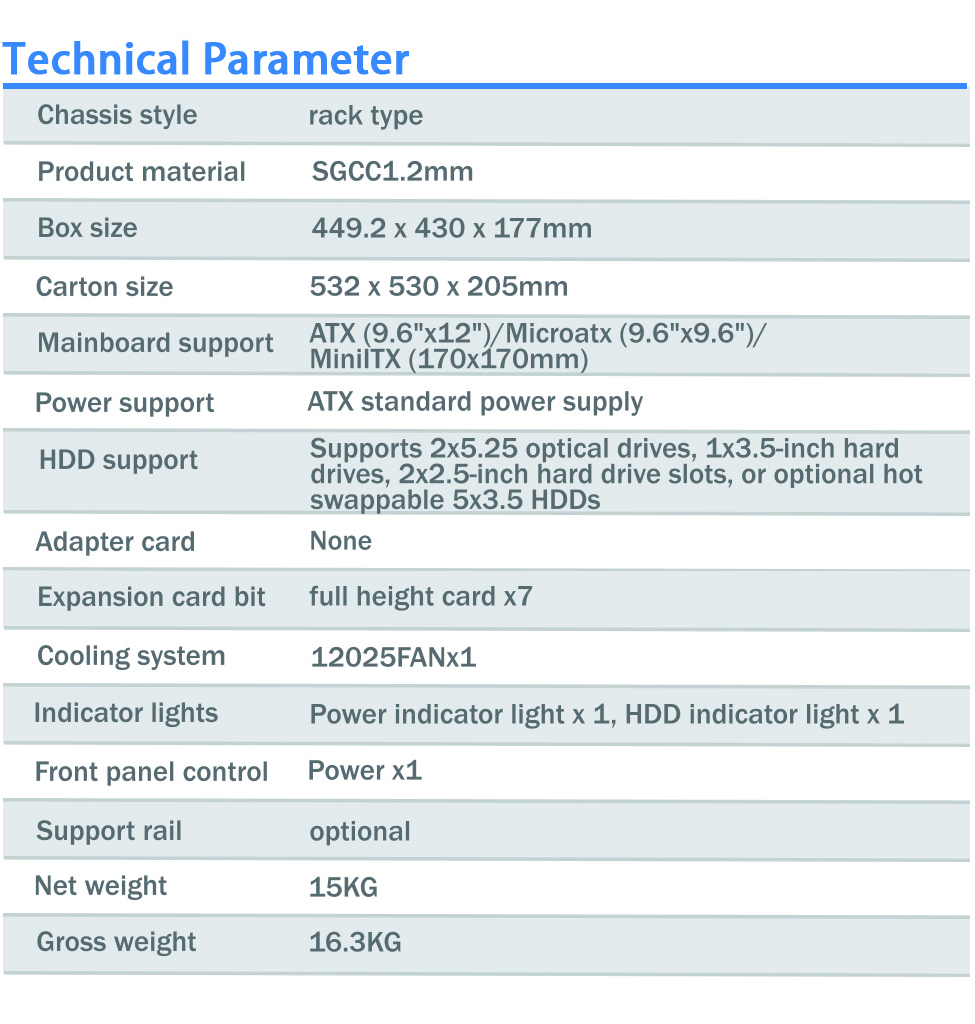

| Chassis style | rack type |
| Product material | SGCC1.2mm |
| Box size | 449.2 x 430 x 177mm |
| Carton size | 532 x 530 x 205mm |
| Mainboard support | ATX (9.6"x12")/Microatx (9.6"x9.6")/MiniITX (170x170mm) |
| Power support | ATX standard power supply |
| HDD support | Supports 2x5.25 optical drives, 1x3.5-inch hard drives, 2x2.5-inch hard drive slots, or optional hot swappable 5x3.5 HDDs |
| Adapter card | None |
| Expansion card bit | full height card x7 |
| Cooling system | 12025FANx1 |
| Indicator lights | Power indicator light x 1, HDD indicator light x 1 |
| Front panel control | Power x1 |
| Support rail | optional |
| Net weight | 15KG |
| Gross weight | 16.3KG |
