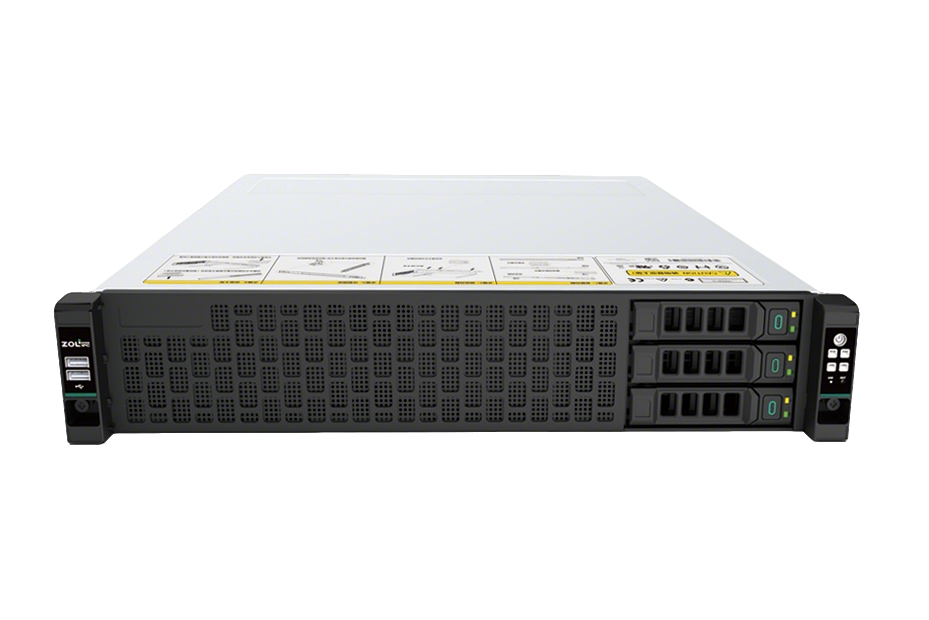

2U/19-inch standard Industrial chassis，Supports up to E-ATX (12
ZL-A2070-2071
ZL-A2070-2071
Applicable solutions
The motherboard supports larger sizes up to and including E-ATX (12”x13”)
SATA direct-connect backplane
Supports standard ATX power supply, standard single power supply, or 1+1 redundant power supply
Intelligent temperature control, supporting up to 3x8025 fans
It supports up to 7 full-height cards in vertical insertion slots, as well as full-height dual-slot cards and half-height cards in horizontal insertion slots
Ultra-high computing power
It supports Intel® Xeon® Scalable series processors (Intel® Core™ i7-10700K), supports 2 high-power CPUs, and has 1 native M.2 interface on the motherboard, enabling ultra-high computing power. At the same time, it has undergone comprehensive improvements in terms of core, frequency, cache, and interconnect channels. It adopts DDR4 memory technology and supports 2TB memory expansion capability, which can be expanded as needed to meet the application requirements of ultra-high computing power in digital currency, cloud computing, big data, virtual computing, and other fields
Good heat dissipation control
The unique design of the front-mounted GPU chamber allows the GPU to draw in more cool air, and features a separate GPU cooling duct, forming a ventilation and heat dissipation channel that runs from the front to the back. This design ensures timely removal of the large amount of heat inside the chassis, thereby guaranteeing stable operation of the server
Extraordinary GPU density support
The 4U system can support up to 10 dual-wide, full-height GPU cards for switch interconnection, and is compatible with the NVIDIA GeForce series and NVIDIA Tesla A800. It offers multiple power supply options, requires no accessory modifications, and provides an unparalleled excellent architecture for pursuing greater computing performance
AI-based intelligent remote management
IPMI remote management enables real-time monitoring and operations, including power-on/off, on the system remotely, ensuring timely maintenance by system administrators. It achieves a true redundancy architecture, encompassing fans, power supplies, and storage

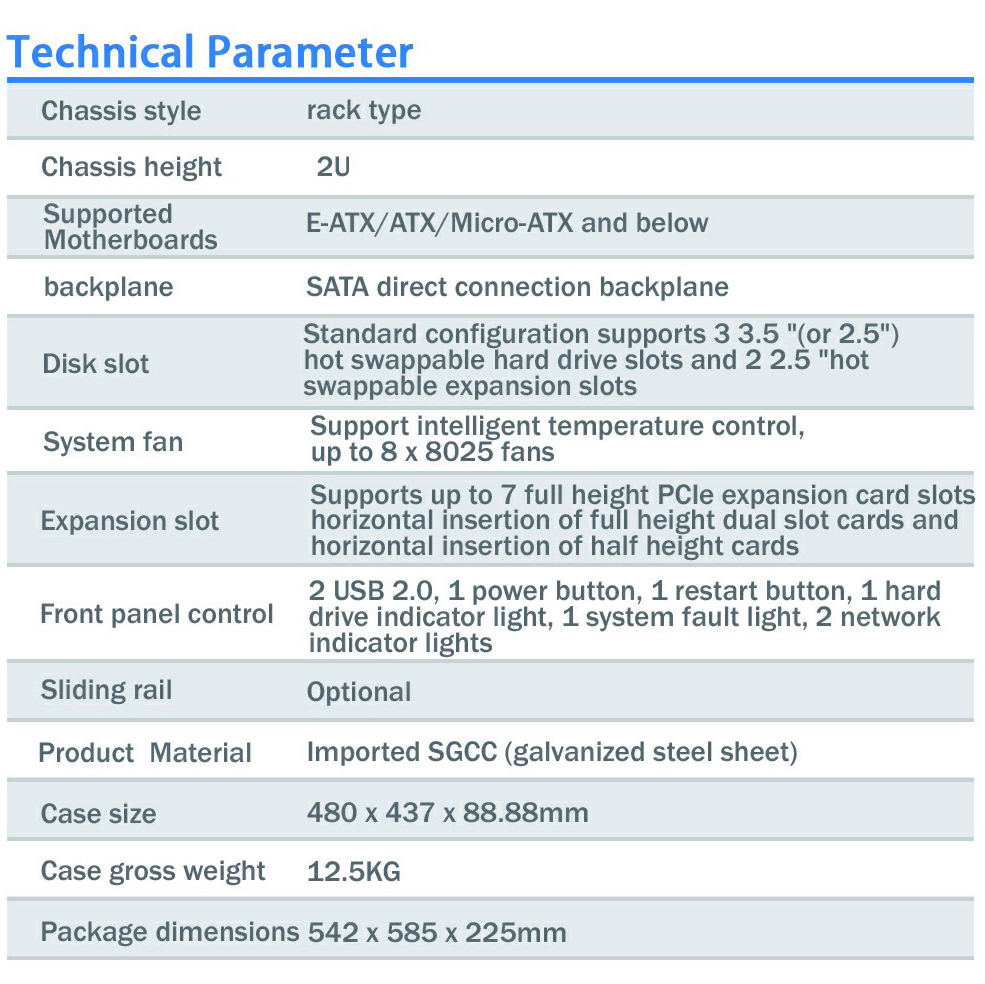

| Chassis style | rack type |
| Chassis height | 2U |
| Supported Motherboards | E-ATX/ATX/Micro-ATX and below |
| backplane | SATA direct connection backplane |
| Disk slot | Standard configuration supports 3 3.5 "(or 2.5") hot swappable hard drive slots and 2 2.5 "hot swappable expansion slots |
| System fan | Support intelligent temperature control,up to 8 x 8025 fans |
| Expansion slot | Supports up to 7 full height PCIe expansion card slots horizontal insertion of full height dual slot cards and horizontal insertion of half height cards |
| Front panel control | 2 USB 2.0, 1 power button, 1 restart button, 1 hard drive indicator light, 1 system fault light, 2 network indicator lights |
| Sliding rail | Optional |
| Product Material | Imported SGCC (galvanized steel sheet) |
| Case size | 480 x 437 x 88.88mm |
| Case gross weight | 12.5KG |
| Package dimensions | 542 x 585 x 225mm |
