2U/19-inch standard Industrial chassis,Supports up to E- ATX (12

ZL-A2030-2031

This 2U 19-inch standard rack chassis supports E-ATX, ATX and Micro-ATX motherboards, with single and 1+1 redundant power options. It holds up to 3×3.5-inch and 4×2.5-inch hard drives and adopts three 8025 fans for intelligent cooling. Equipped with 7 half-height PCIe slots and optional full-height conversion slots. Front panel has USB, buttons and full indicator lights. Made of imported SGCC steel, it features solid structure and rich expansion for computing, storage and data center rack deployment.

Applicable solutions

2U multi-drive rack chassis with redundant power and high expansion for computing and storage servers.

Product Overview Product Specifications relevant materials

The motherboard supports larger sizes up to and including E-ATX (12”x13")
Supports single power supply or 1+1 redundant power supply
Intelligent temperature control, supporting up to 3*8038 plug-in fans

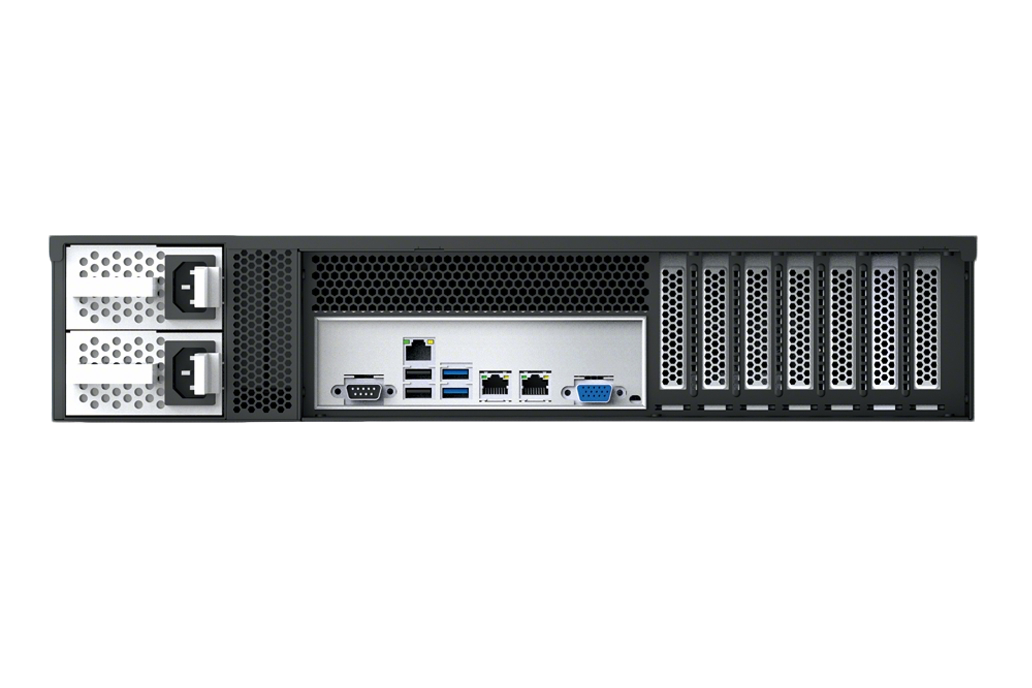

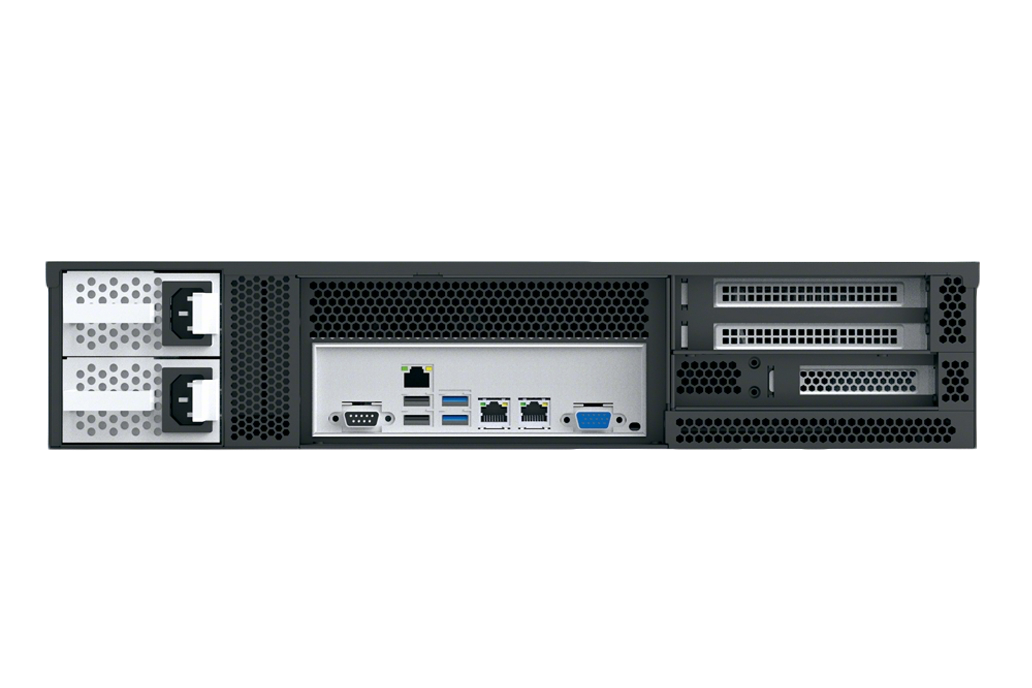

Optional horizontal insertion of full-height dual-position cards % vertical insertion of 7-slot half-height cards

Ultra-high computing power

It supports Intel® Xeon® Scalable series processors (Intel® Core™ i7-10700K), supports 2 high-power CPUs, and has 1 native M.2 interface on the motherboard, enabling ultra-high computing power. At the same time, it has undergone comprehensive improvements in terms of core, frequency, cache, and interconnect channels. It adopts DDR4 memory technology and supports 2TB memory expansion capability, which can be expanded as needed to meet the application requirements of ultra-high computing power in digital currency, cloud computing, big data, virtual computing, and other fields

Good heat dissipation control

The unique design of the front-mounted GPU chamber allows the GPU to draw in more cool air, and features a separate GPU cooling duct, forming a ventilation and heat dissipation channel that runs from the front to the back. This design ensures timely removal of the large amount of heat inside the chassis, thereby guaranteeing stable operation of the server

Extraordinary GPU density support

The 4U system can support up to 10 dual-wide, full-height GPU cards for switch interconnection, and is compatible with the NVIDIA GeForce series and NVIDIA Tesla A800. It offers multiple power supply options, requires no accessory modifications, and provides an unparalleled excellent architecture for pursuing greater computing performance

AI-based intelligent remote management

IPMI remote management enables real-time monitoring and operations, including power-on/off, on the system remotely, ensuring timely maintenance by system administrators. It achieves a true redundancy architecture, encompassing fans, power supplies, and storage

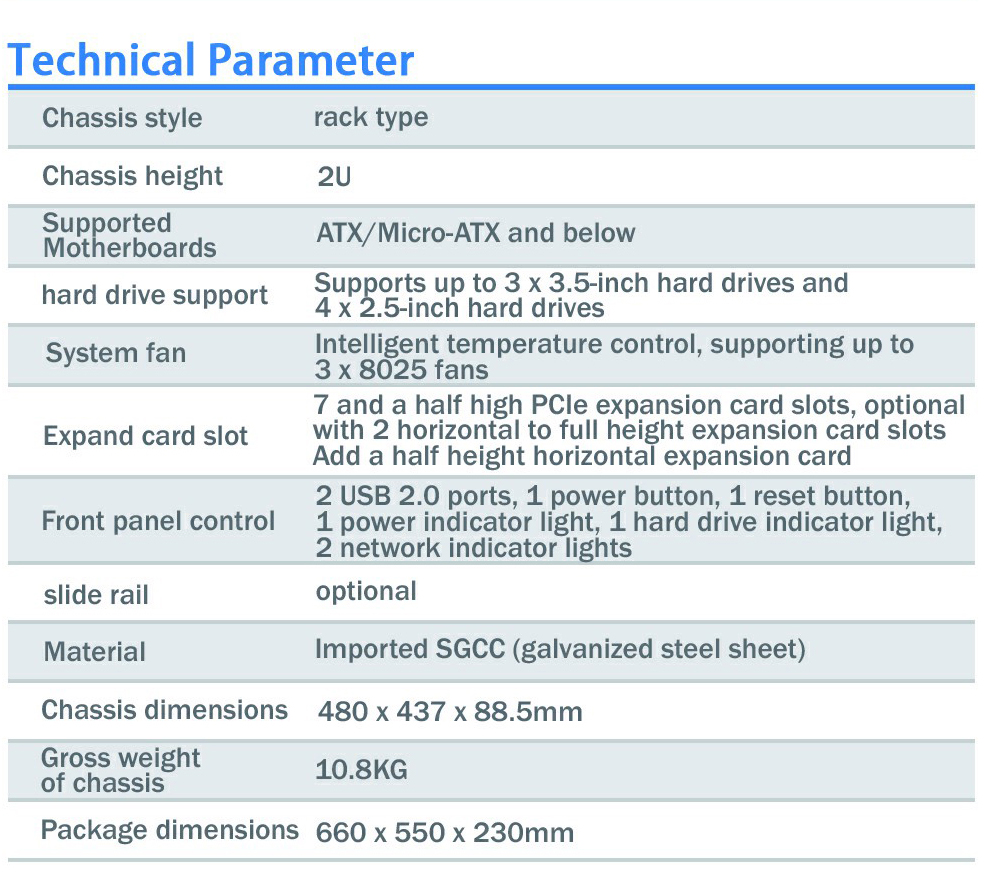

Chassis style	rack type
Chassis height	2U
Supported Motherboards	ATX/Micro-ATX and below
hard drive support	Supports up to 3 x 3.5-inch hard drives and 4 x 2.5-inch hard drives
System fan	Intelligent temperature control, supporting up to 3 x 8025 fans
Expand card slot	7 and a half high PCIe expansion card slots, optional with 2 horizontal to full height expansion card slots Add a half height horizontal expansion card

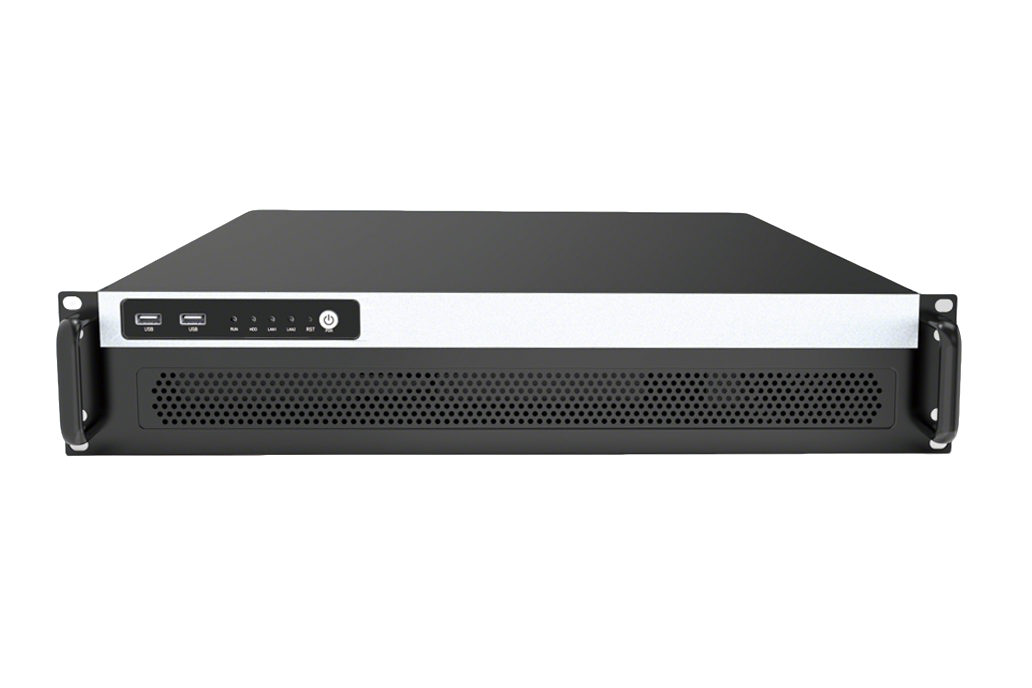

Front panel control	2 USB 2.0 ports, 1 power button, 1 reset button,1 power indicator light, 1 hard drive indicator light,2 network indicator lights
slide rail	optional
Material	Imported SGCC (galvanized steel sheet)
Chassis dimensions	480 x 437 x 88.5mm
Gross weight of chassis	10.8KG
Package dimensions	660 x 550 x 230mm
