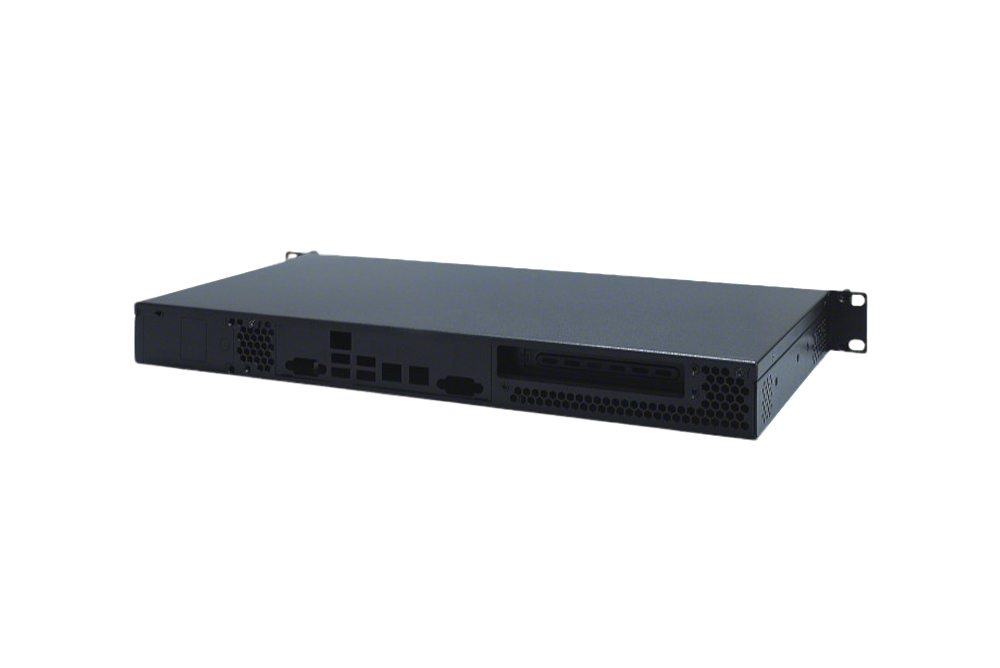

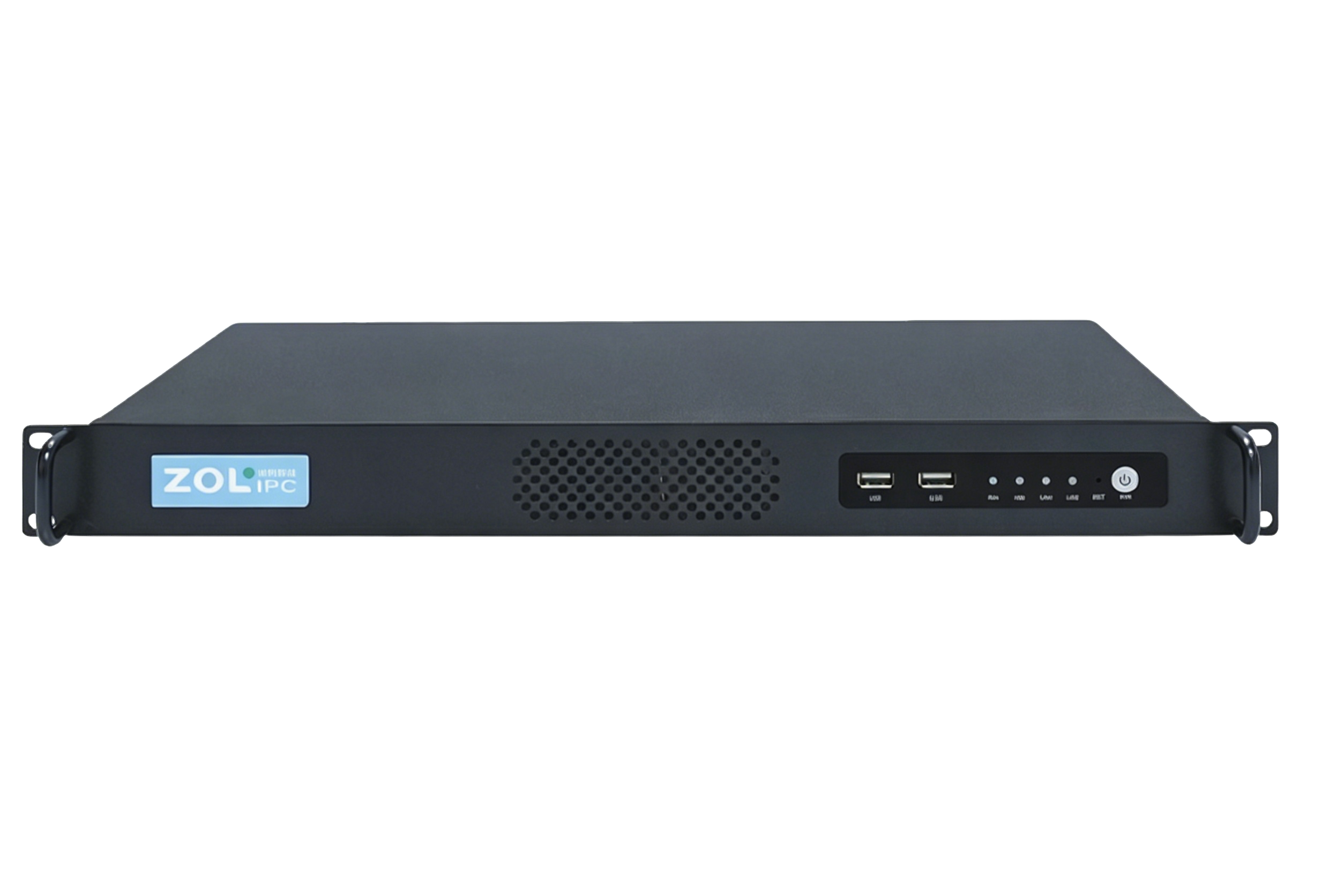

1U/19-inch standard Industrial chassis,Supports up to ATX [9.6
ZL-A1020-1021
ZL-A1020-1021
Applicable solutions
The motherboard supports larger sizes up to and including E-ATX (9"x12")
Supports 1U standard power supply, 1U Flex (small 1U power supply)
Supports 1x3.5-inch hard drive or 1x2.5-inch hard drive slot
Intelligent temperature control, supporting up to 2x4020 fans
Optional horizontal insertion full-height card
Ultra-high computing power
It supports Intel® Xeon® Scalable series processors (Intel® Core™ i7-10700K), supports 2 high-power CPUs, and has 1 native M.2 interface on the motherboard, enabling ultra-high computing power. At the same time, it has undergone comprehensive improvements in terms of core, frequency, cache, and interconnect channels. It adopts DDR4 memory technology and supports 2TB memory expansion capability, which can be expanded as needed to meet the application requirements of ultra-high computing power in digital currency, cloud computing, big data, virtual computing, and other fields
Good heat dissipation control
The unique design of the front-mounted GPU chamber allows the GPU to draw in more cool air, and features a separate GPU cooling duct, forming a ventilation and heat dissipation channel that runs from the front to the back. This design ensures timely removal of the large amount of heat inside the chassis, thereby guaranteeing stable operation of the server
Extraordinary GPU density support
The 4U system can support up to 10 dual-wide, full-height GPU cards for switch interconnection, and is compatible with the NVIDIA GeForce series and NVIDIA Tesla A800. It offers multiple power supply options, requires no accessory modifications, and provides an unparalleled excellent architecture for pursuing greater computing performance
AI-based intelligent remote management
IPMI remote management enables real-time monitoring and operations, including power-on/off, on the system remotely, ensuring timely maintenance by system administrators. It achieves a true redundancy architecture, encompassing fans, power supplies, and storage

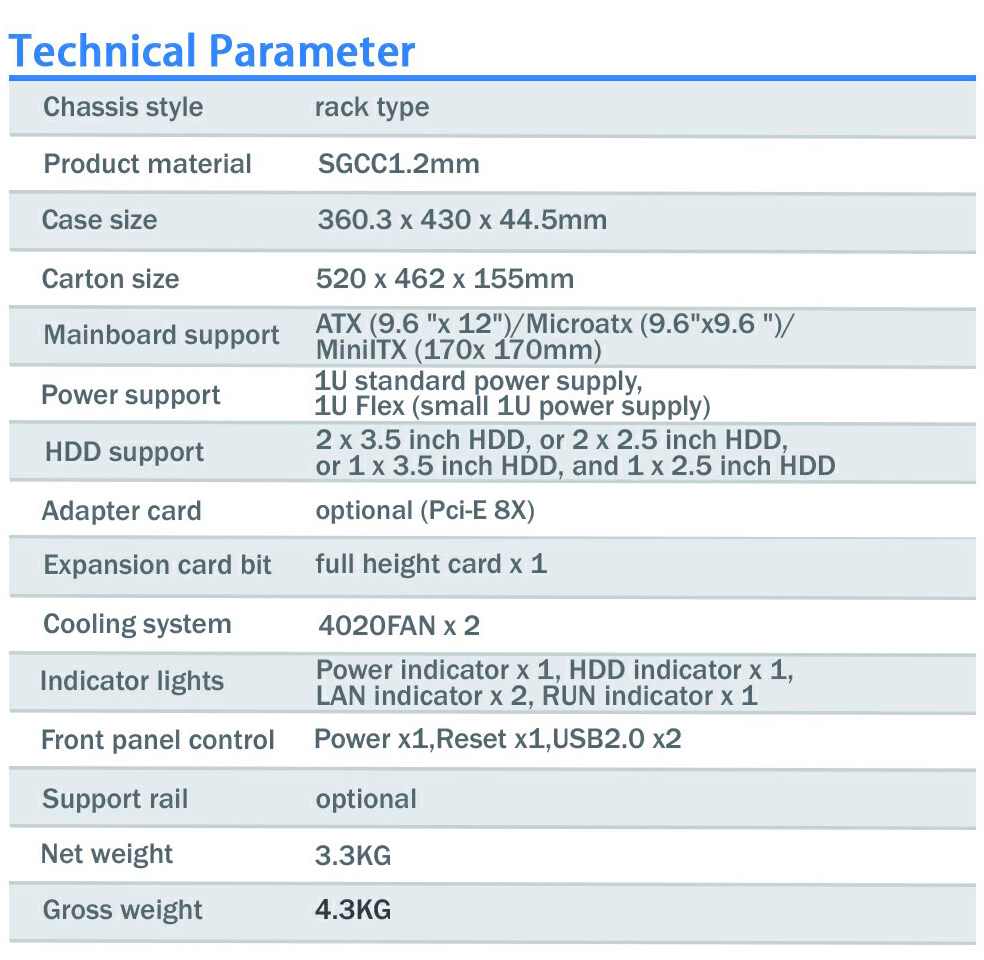

| Chassis style | rack type |
| Product material | SGCC1.2mm |
| Case size | 360.3 x 430 x 44.5mm |
| Carton size | 520 x 462 x 155mm |
| Mainboard support | ATX (9.6 "x 12")/Microatx (9.6"x9.6 ")/MiniITX(170x170mm) |
| Power support | 1U standard power supply,1U Flex (small 1U power supply) |
| HDD support | 2 x 3.5 inch HDD, or 2 x 2.5 inch HDD,or 1 x 3.5 inch HDD, and 1 x 2.5 inch HDD |
| Adapter card | optional (Pci-E 8X) |
| Expansion card bit | full height card x 1 |
| Cooling system | 4020FAN x 2 |
| Indicator lights | Power indicator x 1, HDD indicator x 1, LAN indicator x 2, RUN indicator x 1 |
| Front panel control | Power x1,Reset x1,USB2.0 x2 |
| Support rail | optional |
| Net weight | 3.3KG |
| Gross weight | 4.3KG |
