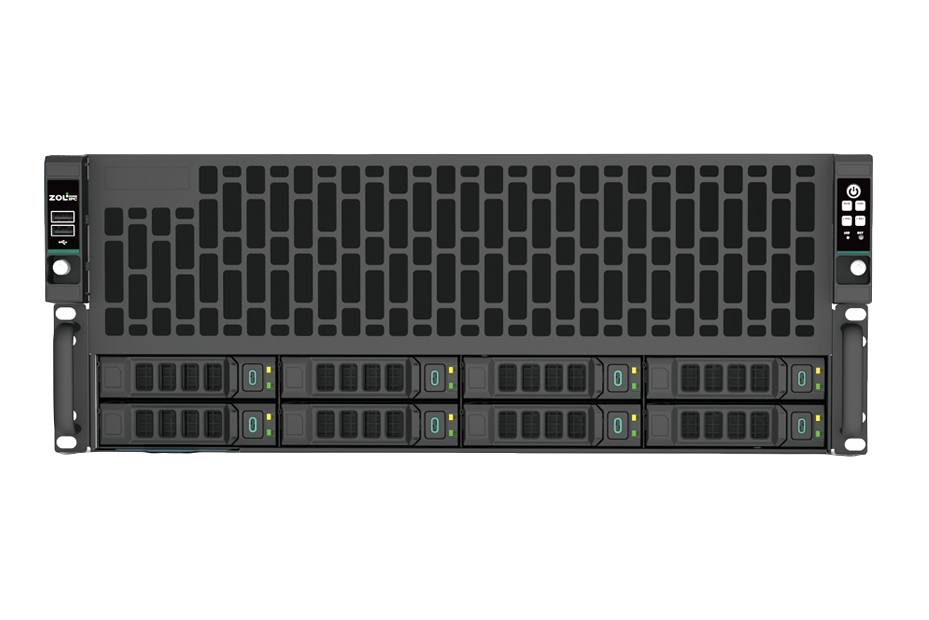

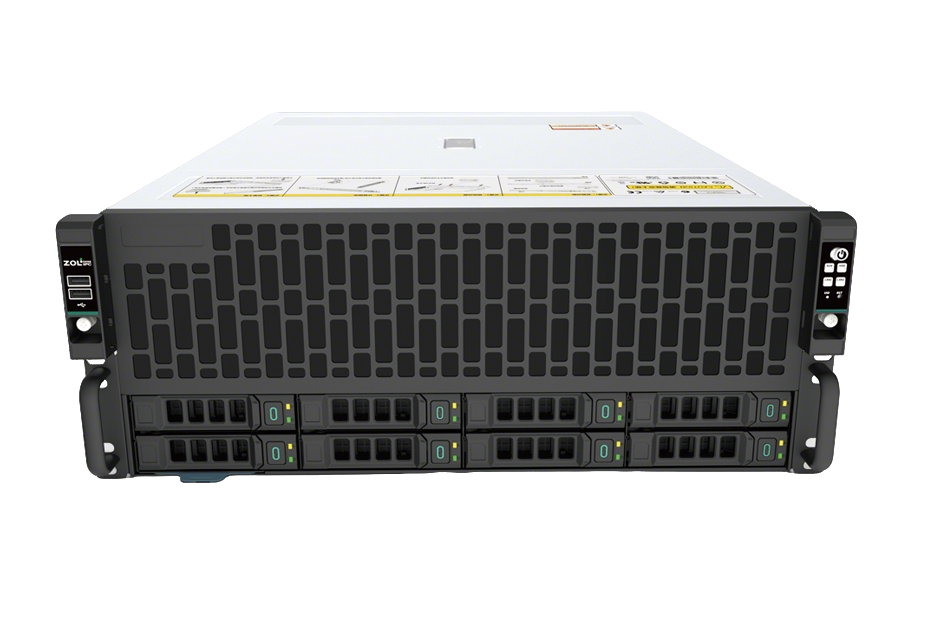

4U/19-inch standard Industrial chassisSupports up to E-ATX (12
ZLS4020-4021
ZLS4020-4021
Applicable solutions
The motherboard supports larger sizes up to and including ATX specifications
12Gb/s direct-connect backplane, compatible with SAS/SATA hard drives
Supports standard ATX power supply or 1+1 redundant power supply

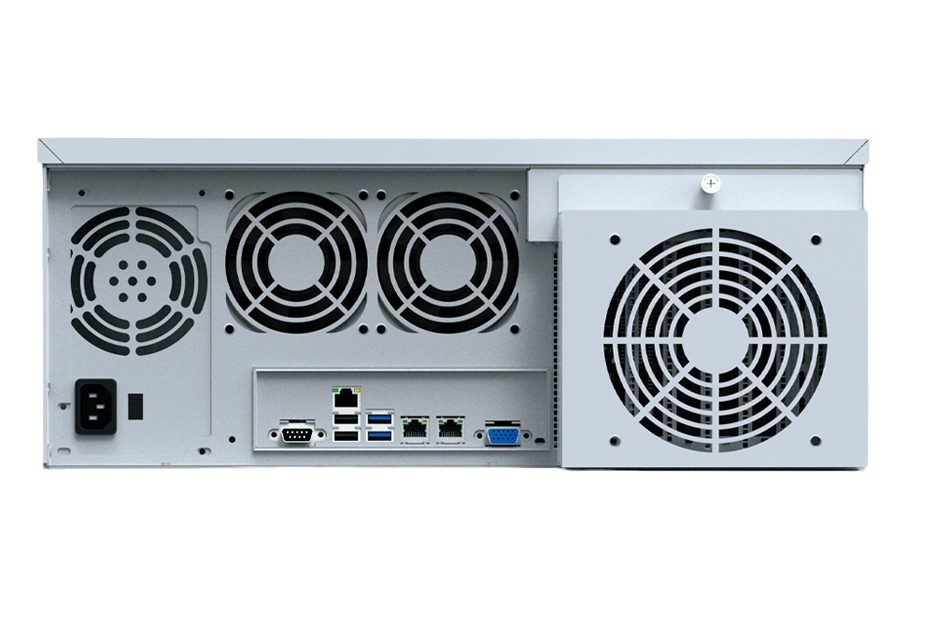

Intelligent temperature control, supporting up to 3x12038 plug-in fans + 2x8038 rear fans + 1x12038 rear-mounted fan
Rear 7-slot full-height PCIe expansion card slot
Ultra-high computing power
It supports Intel® Xeon® Scalable series processors (Intel® Core™ i7-10700K), supports 2 high-power CPUs, and has 1 native M.2 interface on the motherboard, enabling ultra-high computing power. At the same time, it has undergone comprehensive upgrades in terms of core, frequency, cache, and interconnect channels. It adopts DDR4 memory technology and supports 2TB memory expansion capability, which can be expanded as needed to meet the application requirements of ultra-high computing power in digital currency, cloud computing, big data, virtual computing, and other fields
Good heat dissipation control
The unique design of the front-mounted GPU chamber allows the GPU to draw in more cool air, and features a separate GPU cooling duct, forming a ventilation and heat dissipation channel that runs from the front to the back. This design ensures timely removal of the large amount of heat inside the chassis, thereby guaranteeing stable operation of the server
Exceptional GPU density support
The 4U system can support up to 10 dual-wide full-height GPU cards for switch interconnection, and is compatible with the NVIDIA GeForce series and NVIDIA Tesla A800. It offers multiple power supply modes without requiring any accessory modifications, providing an unparalleled excellent architecture for pursuing greater computing performance
AI-based intelligent remote management
IPMI remote management enables real-time monitoring and operations, including system startup and shutdown, from a remote location, ensuring timely maintenance by system administrators. It achieves a true redundancy architecture, encompassing fans, power supplies, and storage

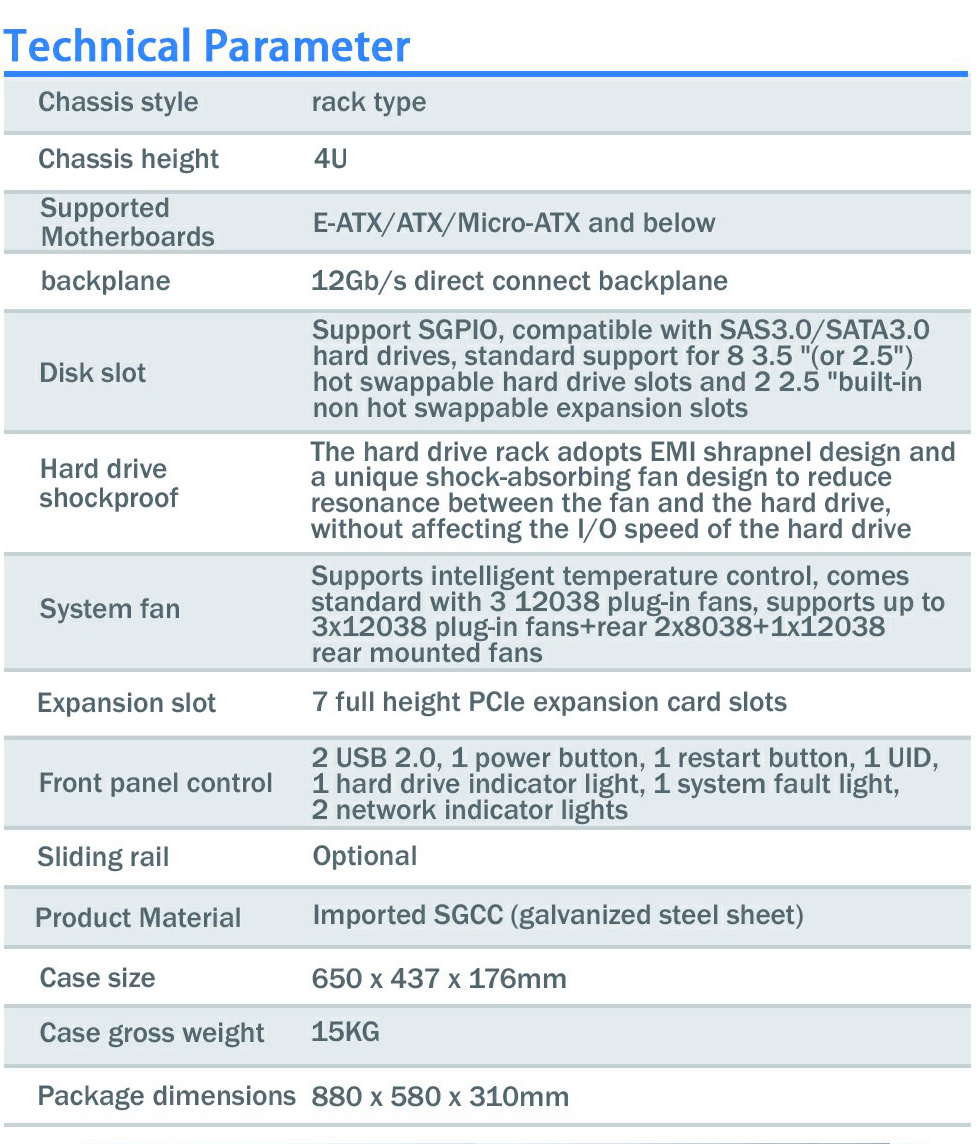

| Chassis style | rack type |
| Chassis height | 4U |
| Supported Motherboards | E-ATX/ATX/Micro-ATX and below |
| backplane | 12Gb/s direct connect backplane |
| Disk slot | Support SGPIO, compatible with SAS3.0/SATA3.0 hard drives, standard support for 8 3.5 "(or 2.5") hot swappable hard drive slots and 2 2.5 "built-in non hot swappable expansion slots |
| Hard drive shockproof | The hard drive rack adopts EMI shrapnel design and a unique shock-absorbing fan design to reduce resonance between the fan and the hard drive, without affecting the I/O speed of the hard drive |
| System fan | Supports intelligent temperature control, comes standard with 3 12038 plug-in fans, supports up to 3x12038 plug-in fans+rear 2x8038+1x12038 rear mounted fans |
| Expansion slot | 7 full height PCIe expansion card slots |
| Front panel control | 2 USB 2.0, 1 power button, 1 restart button, 1 UID, 1 hard drive indicator light, 1 system fault light, 2 network indicator lights |
| Sliding rail | Optional |
| Product Material | Imported SGCC (galvanized steel sheet) |
| Case size | 650 x 437 x 176mm |
| Case gross weight | 15KG |
| Package dimensions | 880 x 580 x 310mm |
