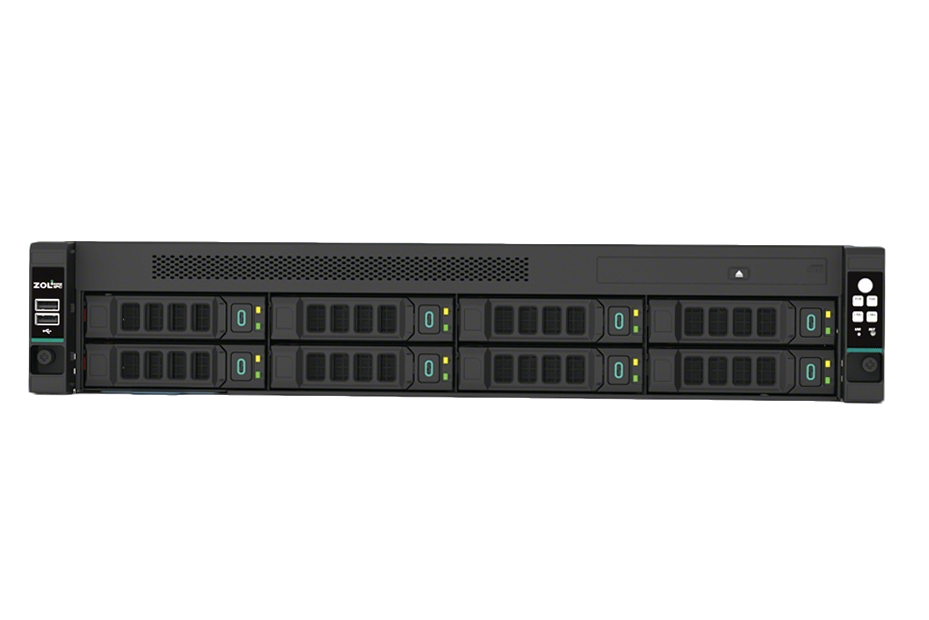

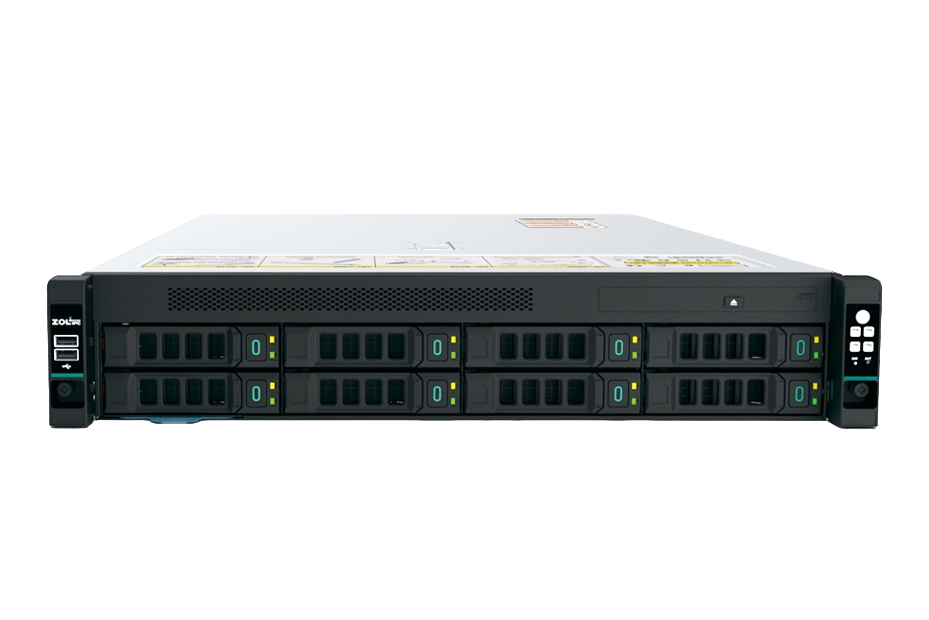

2U/19-inch standard server chassis,supports up to E-ATX motherboards
ZL-S2010-2011
ZL-S2010-2011
Applicable solutions
The motherboard supports larger sizes up to and including E-ATX (12”x13")
12Gb/s direct-connect backplane, compatible with SAS/SATA
Supports single power supply or 1+1 redundant power supply
Intelligent temperature control, supporting up to 4*8038 plug-in fans
Optional horizontal insertion full-height dual-position card
Ultra-high computing power
Supports Intel® Xeon® Scalable series processors (lce Lake), supports 2 high-power CPUs, and features 1 native M.2 interface on the motherboard, enabling ultra-high computing power. It has undergone comprehensive upgrades in terms of core, frequency, cache, and interconnect channels, and adopts DDR4 memory technology, supporting 2TB memory expansion capability, which can be expanded as needed to meet the application requirements of ultra-high computing power in digital currency, cloud computing, big data, virtual computing, and other fields
Good heat dissipation control
The unique design of the front GPU chamber allows the GPU to draw in more cool air, and features an independent GPU cooling duct, forming a ventilation and heat dissipation channel that runs from the front to the back. This design promptly removes a large amount of heat from within the chassis, ensuring stable operation of the server
Extraordinary GPU density support
The 4U system can support up to 10 dual-wide, full-height GPU cards for switch interconnection, and is compatible with the NVIDIA GeForce series and NVIDIA Tesla A800. It offers multiple power supply modes, requires no modification of accessories, and provides an unparalleled excellent architecture for pursuing greater computing performance
AI-based intelligent remote management
IPMI remote management enables real-time monitoring and operations, including system startup and shutdown, from a remote location, ensuring timely maintenance by system administrators. It achieves a true redundancy architecture, encompassing fans, power supplies, and storage

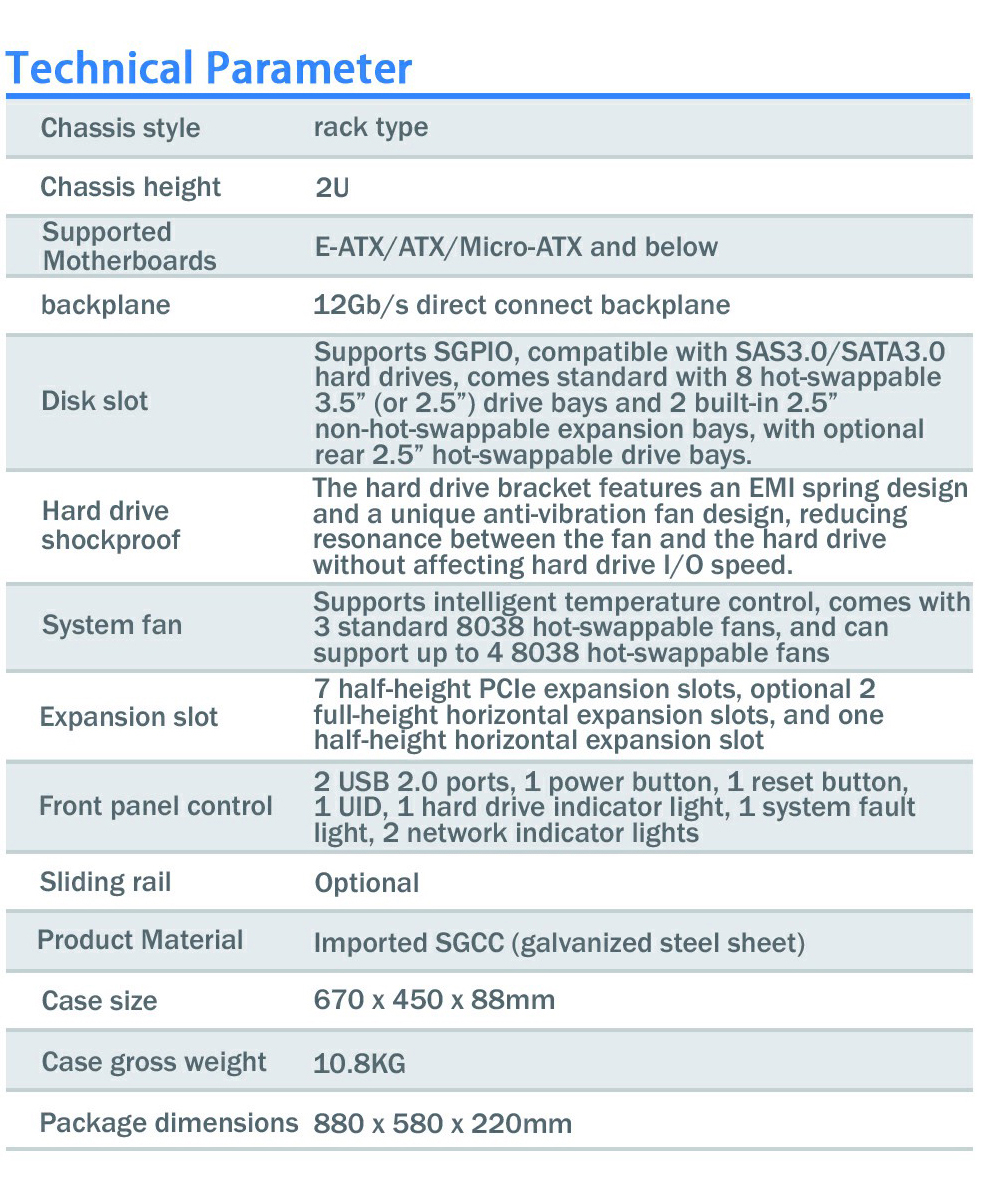

| Chassis style | rack type |
| Chassis height | 2U |
| Supported Motherboards | E-ATX/ATX/Micro-ATX and below |
| backplane | 12Gb/s direct connect backplane |
| Disk slot | Supports SGPIO, compatible with SAS3.0/SATA3.0 hard drives, comes standard with 8 hot-swappable 3.5” (or 2.5”) drive bays and 2 built-in 2.5” non-hot-swappable expansion bays, with optional rear 2.5” hot-swappable drive bays. |
| Hard drive shockproof | The hard drive bracket features an EMI spring design and a unique anti-vibration fan design, reducing resonance between the fan and the hard drive without affecting hard drive I/O speed. |
| System fan | Supports intelligent temperature control, comes with 3 standard 8038 hot-swappable fans, and can support up to 4 8038 hot-swappable fans |
| Expansion slot | 7 half-height PCIe expansion slots, optional 2 full-height horizontal expansion slots, and one half-height horizontal expansion slot |
| Front panel control | 2 USB 2.0 ports, 1 power button, 1 reset button, 1 UID, 1 hard drive indicator light, 1 system fault light, 2 network indicator lights |
| Sliding rail | Optional |
| Product Material | Imported SGCC (galvanized steel sheet) |
| Case size | 670 x 450 x 88mm |
| Case gross weight | 10.8KG |
| Package dimensions | 880 x 580 x 220mm |
