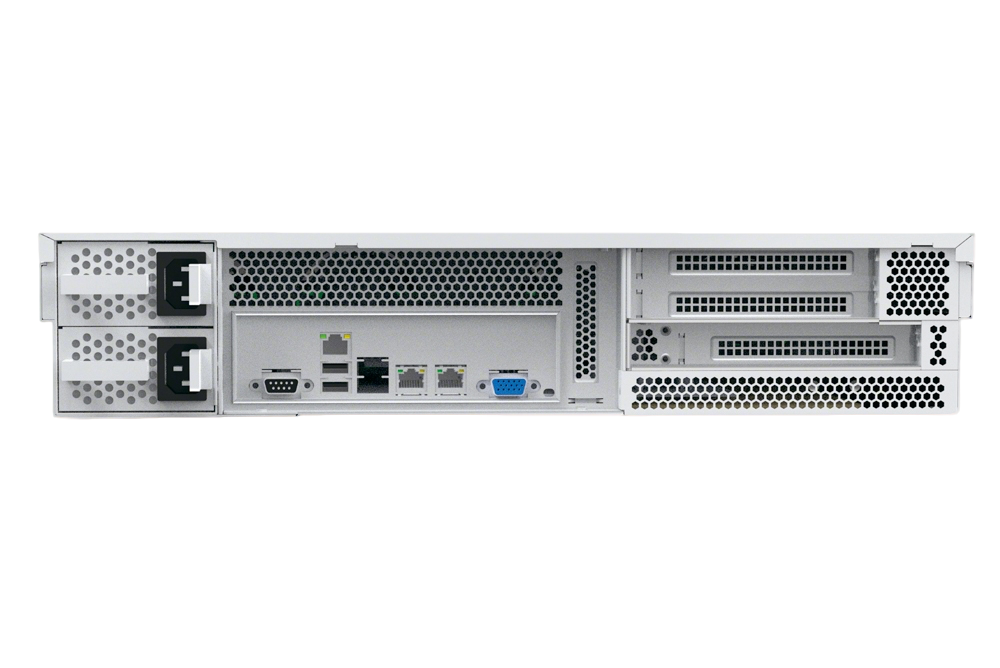

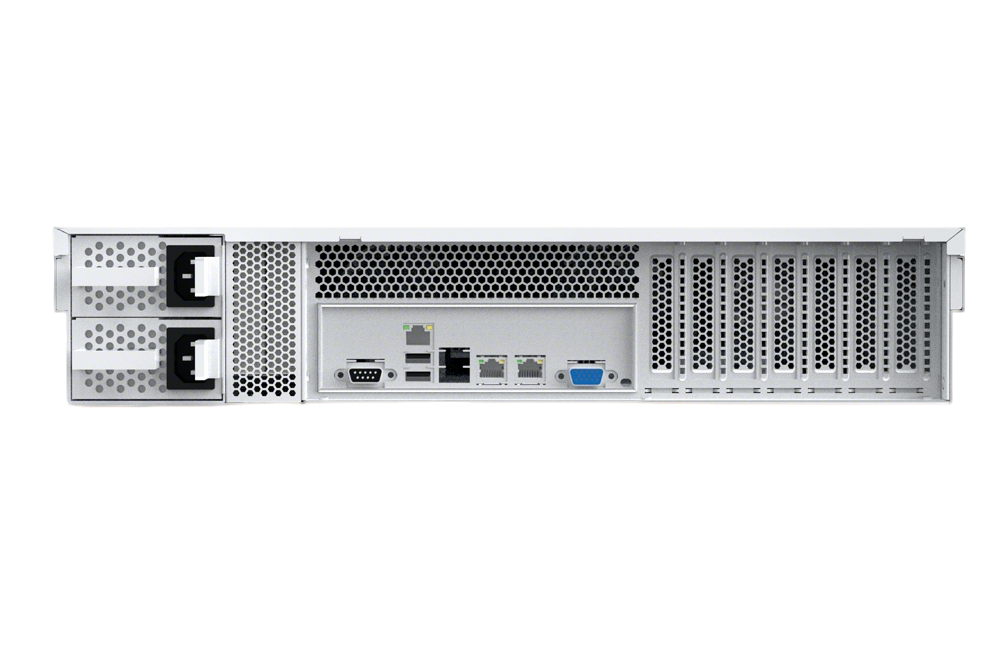

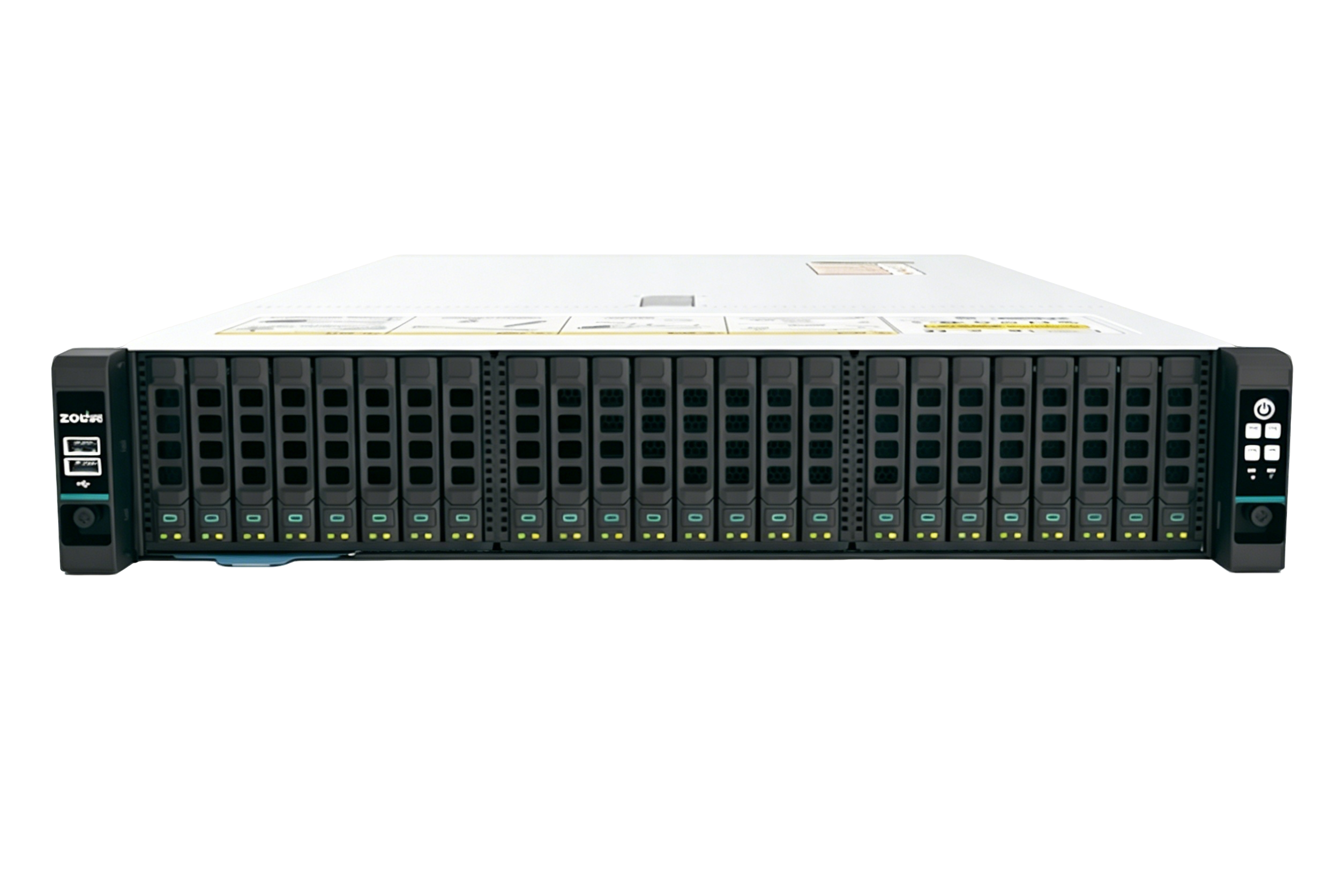

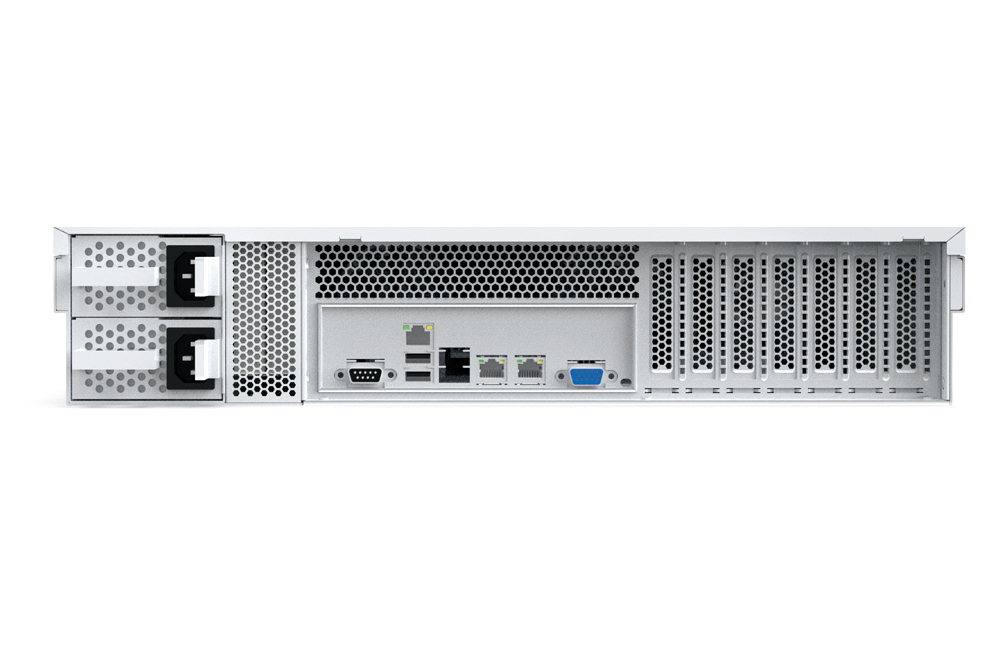

2U/19-inch standard server chassis,supports up to E-ATX motherboards
ZL-S2030-2031
ZL-S2030-2031
Applicable solutions
The motherboard supports larger sizes up to and including E-ATX (12”x13")
Single set of 8xU.2 interfaces, PCIEx4 Gen5/compatible with 8-way SATA resources
Supports single power supply or 1+1 redundant power supply
Intelligent temperature control, supporting up to 4*8038 plug-in fans
Optional horizontal insertion full-height dual-position card
Ultra-high computing power
It supports Intel® Xeon® Scalable series processors (Intel® Core™ i7-10700K), supports 2 high-power CPUs, and has 1 native M.2 interface on the motherboard, enabling ultra-high computing power. At the same time, it has undergone comprehensive improvements in terms of core, frequency, cache, and interconnect channels. It adopts DDR4 memory technology and supports 2TB memory expansion capability, which can be expanded as needed to meet the application requirements of ultra-high computing power in digital currency, cloud computing, big data, virtual computing, and other fields
Good heat dissipation control
The unique design of the front-mounted GPU chamber allows the GPU to draw in more cool air, and features a separate GPU cooling duct, forming a ventilation and heat dissipation channel that runs from the front to the back. This design ensures timely removal of the large amount of heat inside the chassis, thereby guaranteeing stable operation of the server
Extraordinary GPU density support
The 4U system can support up to 10 dual-wide, full-height GPU cards for switch interconnection, and is compatible with the NVIDIA GeForce series and NVIDIA Tesla A800. It offers multiple power supply options, requires no accessory modifications, and provides an unparalleled excellent architecture for pursuing greater computing performance
AI-based intelligent remote management
IPMI remote management enables real-time monitoring and operations, including power-on/off, on the system remotely, ensuring timely maintenance by system administrators. It achieves a true redundancy architecture, encompassing fans, power supplies, and storage

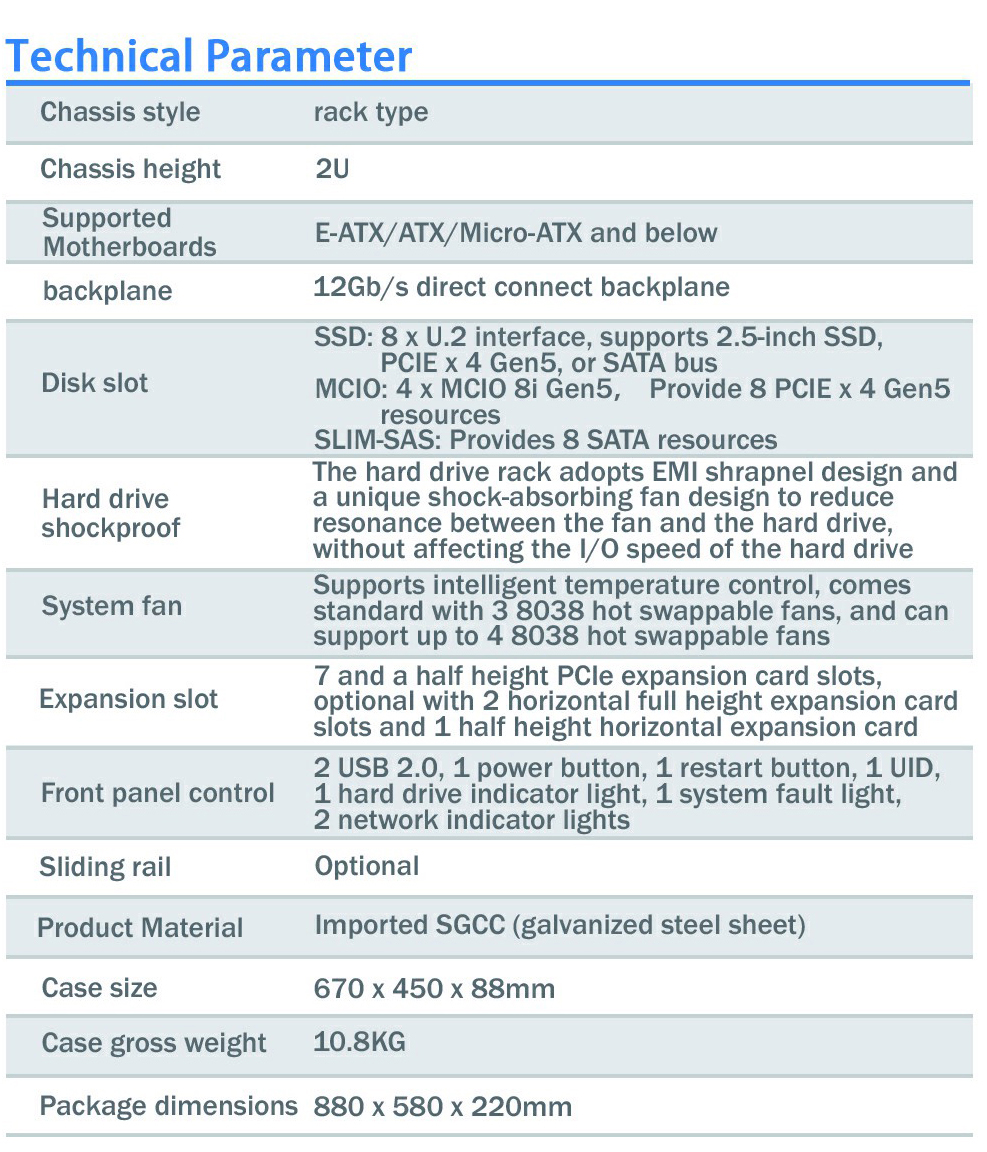

| Chassis style | rack type |
| Chassis height | 2U |
| Supported Motherboards | E-ATX/ATX/Micro-ATX and below |
| backplane | 12Gb/s direct connect backplane |
| Disk slot | SSD: 8 x U.2 interface, supports 2.5-inch SSD, PCIE x 4 Gen5, or SATA bus MCIO: 4 x MCIO 8i Gen5, Provide 8 PCIE x 4 Gen5 resources SLIM-SAS: Provides 8 SATA resources |
| Hard drive shockproof | The hard drive rack adopts EMI shrapnel design and a unique shock-absorbing fan design to reduce resonance between the fan and the hard drive, without affecting the I/O speed of the hard drive |
| System fan | Supports intelligent temperature control, comes standard with 3 8038 hot swappable fans, and can support up to 4 8038 hot swappable fans |
| Expansion slot | 7 and a half height PCIe expansion card slots, optional with 2 horizontal full height expansion card slots and 1 half height horizontal expansion card |
| Front panel control | 2 USB 2.0, 1 power button, 1 restart button, 1 UID, 1 hard drive indicator light, 1 system fault light, 2 network indicator lights |
| Sliding rail | Optional |
| Product Material | Imported SGCC (galvanized steel sheet) |
| Case size | 670 x 450 x 88mm |
| Case gross weight | 10.8KG |
| Package dimensions | 880 x 580 x 220mm |
