1U/19-inch standard Industrial chassis,Supports up to E-ATX (12

ZL-S1010-1011

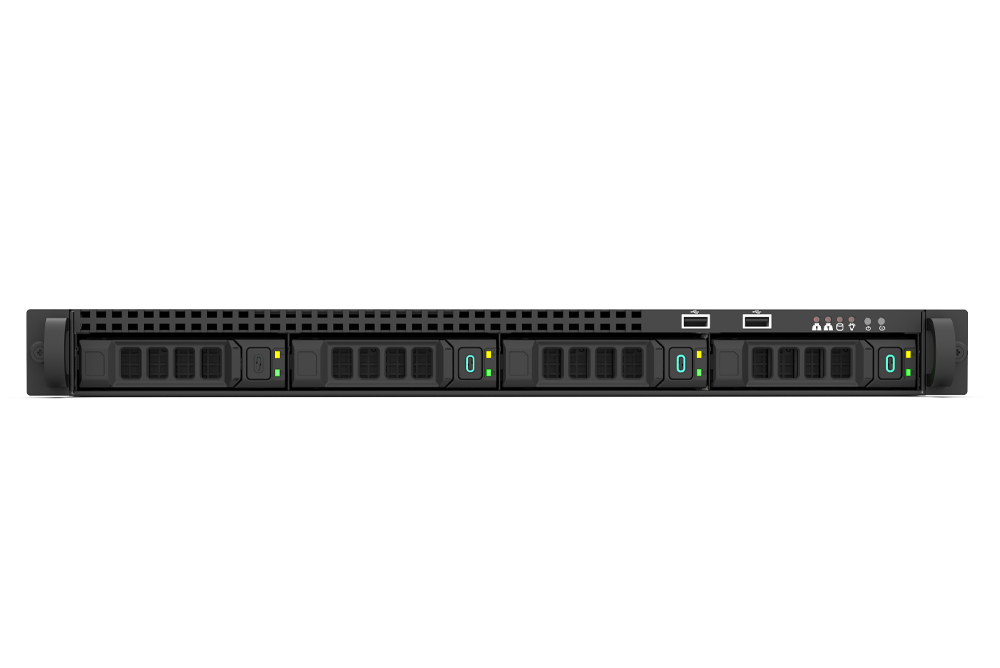

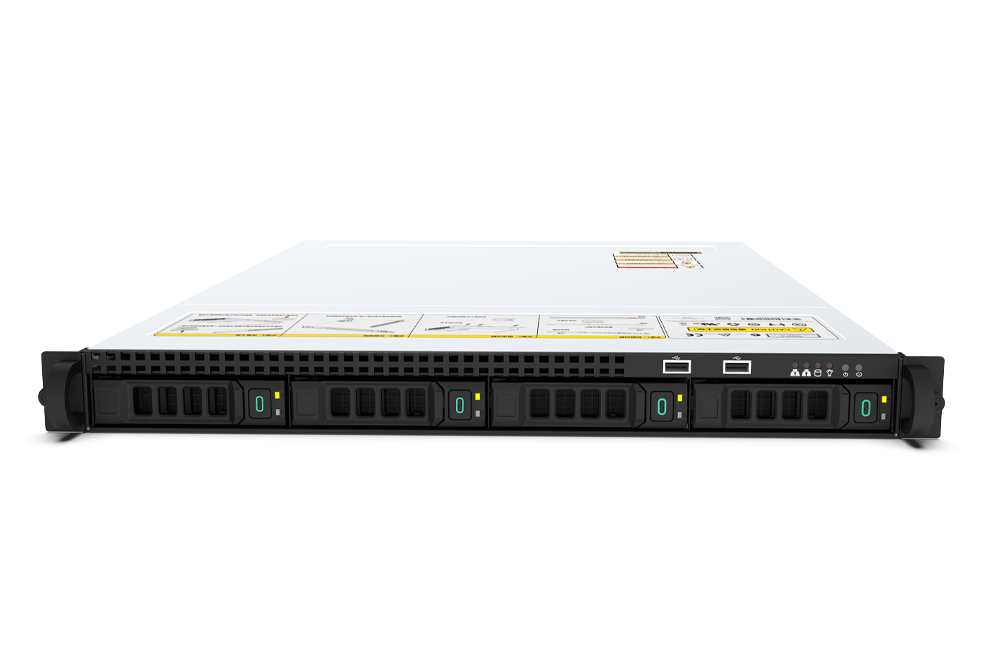

ZL-S1010/1011 is a 1U 19-inch standard rack-mount server chassis, featuring a compact and efficient body. It supports up to E-ATX large-size motherboards and is compatible with ATX, Micro-ATX, and all lower-specification motherboards. It comes standard with a direct-connect SAS/SATA backplane and can be optionally equipped with an NVMe 4.0 high-speed hybrid backplane, compatible with SAS3.0 and SATA3.0 hard drives. It also comes standard with 4 3.5/2.5-inch hot-swappable hard drive bays, meeting high-density storage expansion needs.

Applicable solutions

Cloud computing ∣ Digital twin ∣ Training and inference ∣ Scientific computing

Product Overview Product Specifications relevant materials

The motherboard supports larger sizes up to and including E-ATX (12″x 13″) specifications
12Gb/s direct-connect backplane, compatible with SAS/SATA hard drives
Supports single power supply or 1+1 (1u redundant power supply)
Intelligent temperature control, supporting up to 6 x 4056/4028 plug-in fans
Support full-height card X1

Ultra-high computing power

It supports Intel® Xeon® Scalable series processors (Intel® Core™ i7-10700K), supports 2 high-power CPUs, and has 1 native M.2 interface on the motherboard, enabling ultra-high computing power. At the same time, it has undergone comprehensive improvements in terms of core, frequency, cache, and interconnect channels. It adopts DDR4 memory technology and supports 2TB memory expansion capability, which can be expanded as needed to meet the application requirements of ultra-high computing power in digital currency, cloud computing, big data, virtual computing, and other fields

Good heat dissipation control

The unique design of the front-mounted GPU chamber allows the GPU to draw in more cool air, and features a separate GPU cooling duct, forming a ventilation and heat dissipation channel that runs from the front to the back. This design ensures timely removal of the large amount of heat inside the chassis, thereby guaranteeing stable operation of the server

Extraordinary GPU density support

The 4U system can support up to 10 dual-wide, full-height GPU cards for switch interconnection, and is compatible with the NVIDIA GeForce series and NVIDIA Tesla A800. It offers multiple power supply options, requires no accessory modifications, and provides an unparalleled excellent architecture for pursuing greater computing performance

AI-based intelligent remote management

IPMI remote management enables real-time monitoring and operations, including power-on/off, on the system remotely, ensuring timely maintenance by system administrators. It achieves a true redundancy architecture, encompassing fans, power supplies, and storage

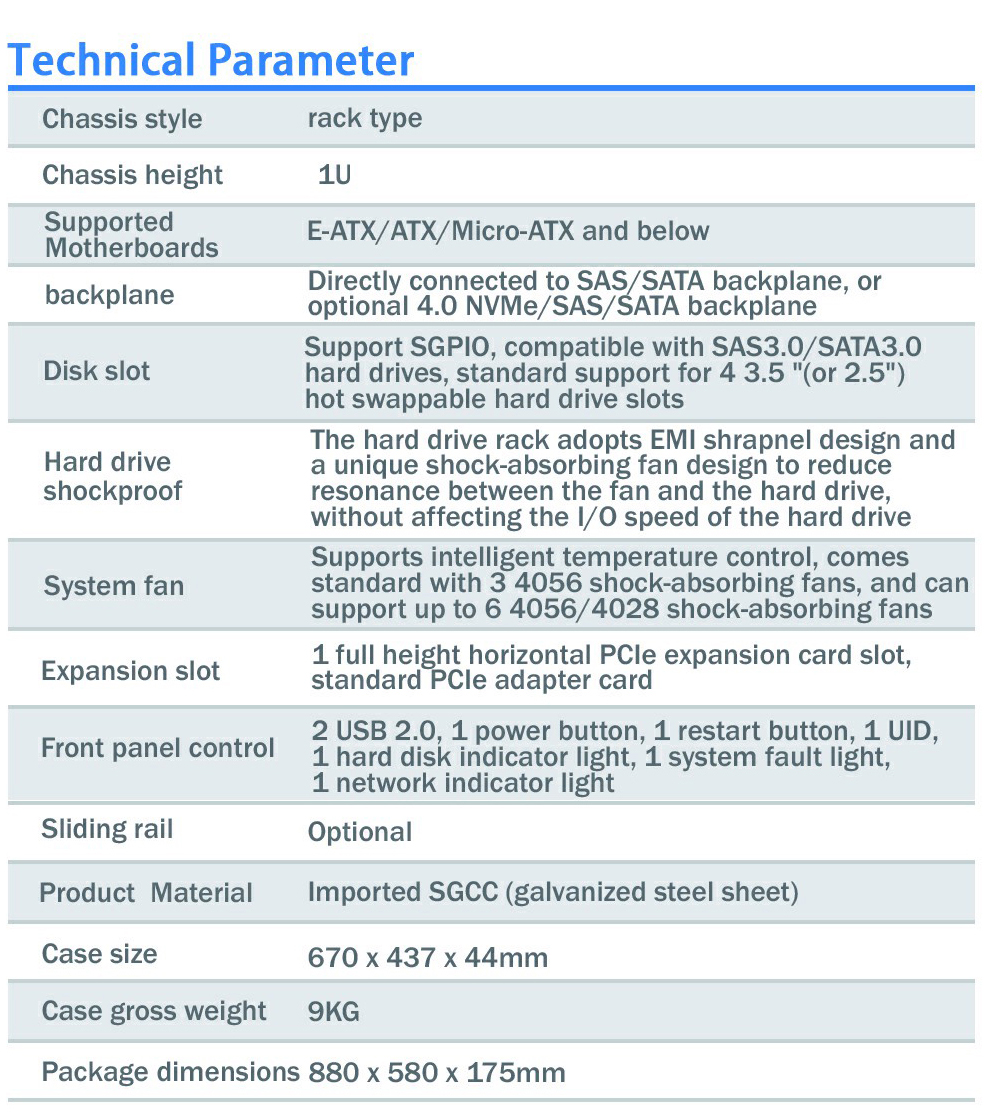

Chassis Form Factor	Rackmount
Chassis Height	1U
Compatible Motherboard	E-ATX/ATX/Micro-ATX and below
Backplane	Direct-connected SAS/SATA backplane, optional 4.0 NVMe/SAS/SATA backplane available
Drive Bays	Supports SGP10, compatible with SAS3.0/SATA3.0 drives, standard with 4 hot-swap bays for 3.5" or 2.5" HDD
HDD Shock Resistance	EMI spring on HDD tray, exclusive anti-vibration fan design reduces resonance without affecting HDD I/O speed
System Fans	Intelligent thermal control, 3×4056 anti-shock fans standard, max 6×4056/4028 anti-shock fans
Expansion Slot	1 full-height horizontal PCIe slot with PCIe riser card included
Front Panel I/O	2×USB2.0, Power key, Reset key, UID, HDD LED, System Fault LED, 2×LAN LED
Slide Rail	Optional
Material	Imported SGCC galvanized steel
Chassis Dimension	670 × 437 × 44mm
Gross Weight	9KG
Package Size	880 × 580 × 175mm

Related Downloads

Specification document
